ds203-00 stop functioning
my ds203-00 stop functioning after i uploaded this firmware "tios-em1000w-2_16_30.bin"
can someone resolve this problem???
thanks in advance!!
can someone resolve this problem???
thanks in advance!!
I’m frustrated
1
person has this problem
I have this problem, too!
Tell me when someone solves it.
The more people who report this problem, the more it gets noticed.
The more people who report this problem, the more it gets noticed.
Create a customer community for your own organization
Plans starting at $19/month
-
Inappropriate?Sure, the problem is you uploaded the firmware for the EM1000W into the DS203.
You need to get the firmware for the DS203 (from http://www.tibbo.com/get_firmware.php) and do a serial upload.
To do a serial upload, follow this procedure: http://docs.tibbo.com/soism/index.htm...
Note that it must be _serial_ -- not through the network.
I’m optimistic
-

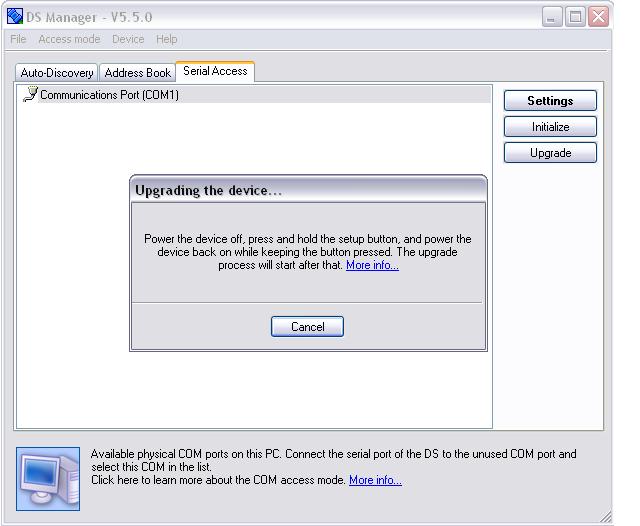

Inappropriate?I'm uploading this firmware EM_370D.BIN and i connected it to the serial. i followed the DS Manager's instruction to hold the setup button and power it while holding the setup button. but the upgrade wont go through the device just keep blinking in red.
I’m confused
-
Inappropriate?I suspect something with the cable is wrong, or wrong COM port or something like that. Can you post a screenshot showing exactly what you are doing?
-
Inappropriate?my cable is good and my COM port is correct

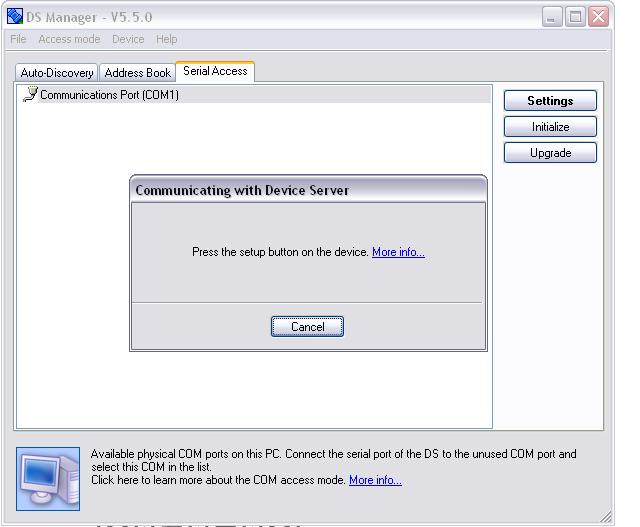

here is my defective device. it just keep on blinking in red.

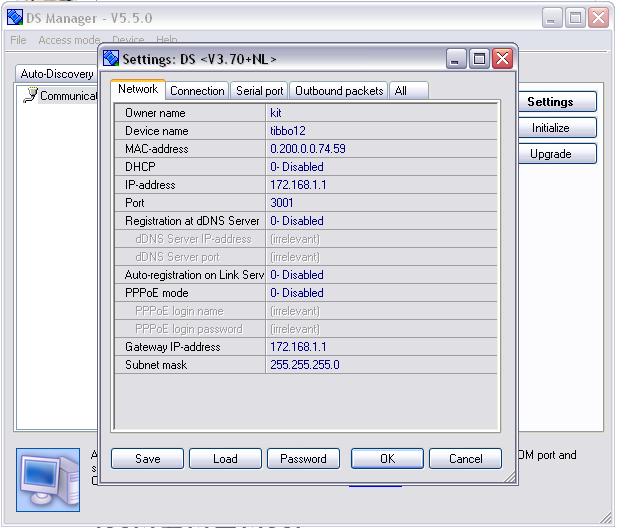

here is my working device
I'm using the same cable
I’m confused
-
Inappropriate?Wait, the last screenshot shows you can actually access the device, and it seems to be running the correct firmware!
Now Initialize it using the Initialize button.
Then run Connection Wizard. -
Inappropriate?i have two devices.
the first two screen shots is my defective device and the third screen shot is my working device.
I’m confused
-
Inappropriate?Hi Mao,
I am wondering, when you restart the DS203 with the setup button pressed, does it go into the upload process? If the upload process is finished and you see the red light blinking, it means that it is in "Error mode" and you will need to initialize the unit. Please refer to the following links for more info:
http://docs.tibbo.com/soism/fwr_statu...
http://docs.tibbo.com/soism/error_mod...
-
Inappropriate?hi tbone
how can i manualy reset the device?? is there any software needed to do this?
thanks!
I’m excited
-
-
Inappropriate?OK, on the screen where it says "Power the device off, press and hold the setup button, and...." When it appears on the screen, please follow the instruction, as for the position of the setup button, please refer to our online manual:
http://docs.tibbo.com/soism/ds203_con... -
Inappropriate?my PC can't detect my device.
when i try to initialize the device
(this is what it shows)

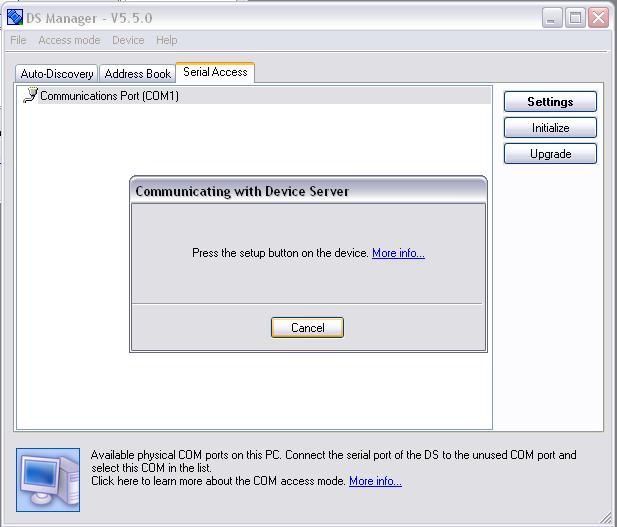

when i click "ok". the DS manager will instruct me press or hold the setup button
then I'll be stuck in this step.
(i'm using good cable and correct port) -
Inappropriate?And do you press the setup button like it says? Do you know where the button is?
Please describe exactly what you do with your Tibbo device when this message is shown on the screen. -
Inappropriate?yes, I'm pressing the set up button. the set up button is located beside the ethernet port of the device.
I'm using DB9 female to DB9 female serial cable. i connect it to the serial port of the device to the PC.
when i start the device manager. i go to the serial access tab select the COM1 port and then click initialize.

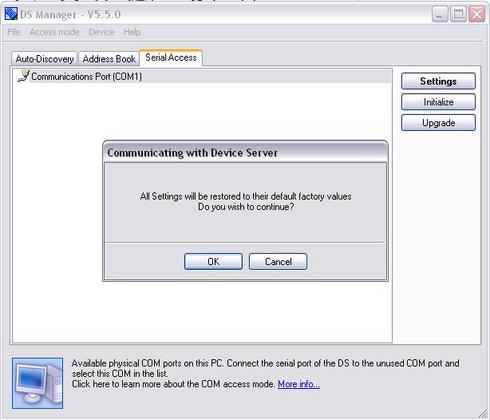

when i click initialize, the device will prompt me a warning message that says "All settings will be restored to their default factory values. Do you wish to continue?" then i will click ok
after i click "ok" the the device will instruct me to press the setup button.
then it is stuck in this procedure.
note: the cable is good I am using it to other ds203 device and its working fine. -
Inappropriate?I am confused, I thought that you first loaded the wrong firmware "tios-em1000w-2_16_30.bin" into the DS203. So, you lost connectivity with DS Manager on the Ethernet side.
So, we have been trying to get the firmware upload to work through the serial side and thus the instructions from my last reply to you. Did the steps that I mentioned help and is the device loaded with the correct firmware now?
You can only "initialize" when you have the correct fixed function firmware (EM_370.bin) loaded into the device first.
